Self Levelling Sewer Camera 11mm x 60meter

Self Levelling Sewer Camera 11mm x 60meter

Regular price £4,000.00 GBP
Regular price Sale price £4,000.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

This push camera is suitable for pipe diameters of 50-300mm sewer pipes. The Push Camera is a great tool for the inspection of pipe walls. It supports video & audio record, picture snap, meter / foot counting, text writing and waterproof IP 68.

These units feature a self levelling camera head which view and capture every detail of your inspection. The camera head features a compact (40mm dia) detachable design which is completely waterproof(IP68) and contains 8pcs super bright adjustable LED lights to provide consistent illumination. The light intensity can be easily controlled to avoid flaring, and the sensitive high performance NVP2431H ISP processor chip is protected by a thick scratch-proof sapphire glass.

The 8” colour digital screen with control part with video (AVI) and image (PNG) capture of your inspections

Camera Head Parameters:

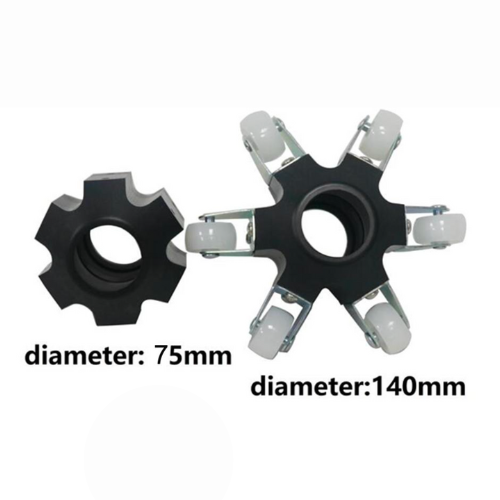

2pieces (75/140mm diameter)                                                                                     Camera size: Φ40 x 60mm
Image sensor: 1280*960P
Main chip: high performance NVP2431H ISP processor
Resolution: AHD: 1.3 million pixels 960P; CVBS: 1200 lines
Working temperature: -20~80
°C; Working humidity: <80%
Camera material: stainless steel and aluminium alloy housing
IP68 waterproof
Camera lens material: sapphire glass; Lens angle: 120°
Camera with auto balance function
Camera light: 8 bright LED beads (light adjustable)

Control Box:

HD DVR SYSTEM with 720P video

OSD language: English
Audio, video, photo recording & playback function Movie format: AVI; Picture format: PNG
Digital clock and calendar
Battery level indicator lights
LED brightness adjustable
On / off microphone

The Screen:

10"HD IPS LCD Screen, 1280X720 resolution * Sunshade is included

The Control Box:

HD DVR SYSTEM with 720P video

Waterproof LCD panel
USB port to connect storage device ( 16G USB flash disk)

Cable Reel:

Wire material: fiberglass rod
Fiberglass length:60m/120m(standard), 60m to 120m optional Fiberglass diameter: ø9mm(standard) or 11mm (optional) Fiberglass colour: yellow or black
Cable brake
Pin cap to protect the cable connector
Updated digital meter counter, error rate less than 1%.
2pieces (75/140mm diameter)
